Description:

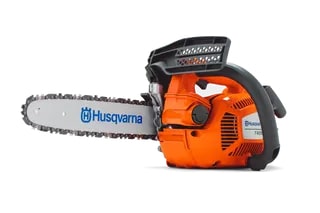

Mid-sized X-Torq® tree care saw. It´s a lightweight powerful chainsaw for pruning in parks as well as vineyards and fruit orchards.

The low weight and well-balanced saw body makes it very easy to work with.

Specifications:

Engine

• Cylinder Displacement: 35.2 cm³
• Output Shaft Power: 2.01 hp
• Chain Speed at Max Power: 62.3 ft/s
• Torque, Max.: 1.57 Nm @ 7,500 rpm
• Clutch Engagement Speed (±120): 4,700 rpm
• Idling Speed: 2,900 rpm
• Max Power Speed: 10,000 rpm
• Electrode Gap: 0.03 in
• Ignition Module Air Gap: 0.02 in
• Spark Plug: NGK CMR6H

Oil Pump

• Type: Automatic
• Capacity (Max): 9 ml/min
• Capacity (Min): 3 ml/min

Equipment

• Bar Length: 12 in (30 cm)
• Recommended Bar Length (Min–Max): 12 – 14 in
• Pitch: 3/8" mini
• Gauge: .050"
• Chain Type: H37
• Sprocket Type: Spur 6

Dimensions

• Weight (Excl. Cutting Equipment): 7.5 lbs

Sound and Noise

• Sound Pressure Level at Operator's Ear: 103 dB(A)
• Sound Power Level, Guaranteed (LWA): 114 dB(A)
• Sound Power Level, Measured: 112 dB(A)

Vibration

• Front Handle: 3.6 m/s²
• Rear Handle: 3.9 m/s²

Lubrication

• Oil Tank Volume: 0.36 US pint
• Lubricant Type: Husqvarna 2-stroke or equivalent at 50:1

Emissions

• Exhaust Emissions (CO₂ EU V): 860 g/kWh
