Description:

Quality and performance come standard.

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• Common Applications
• Lawn mowers
• Commercial lawn and garden equipment
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment

Specifications:

• General Information
• Engine Type: Air-cooled 4-stroke OHV
• Displacement: 163 cm³
• Bore x Stroke: 68 mm x 45 mm
• Compression Ratio: 8.0:1
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Performance
• Net Power Output: 4.3 hp (3.2 kW) @ 3,600 rpm
• Net Torque: 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
• Fuel & Lubrication
• Fuel Type: Unleaded gasoline (86 octane or higher)
• Fuel Tank Capacity: 1.5 U.S. qts (1.4 liters)
• Lubrication System: Splash
• Oil Capacity: 0.69 U.S. qt (0.65 liters)
• Ignition & Starting
• Ignition System: Transistorized magneto
• Starting System: Recoil
• Carburetion & Air Filtration
• Carburetor Type: Float Type
• Air Cleaner: Dual Element
• Governor System
• Type: Centrifugal Mechanical
• Physical Dimensions & Weight
• Length: 16.3" (415 mm)
• Width: 14.1" (359 mm)
• Height: 13.9" (354 mm)
• Dry Weight: 32 lbs (14.5 kg)
• Compliance & Warnings
• California Prop 65 Warning: Yes

Description:

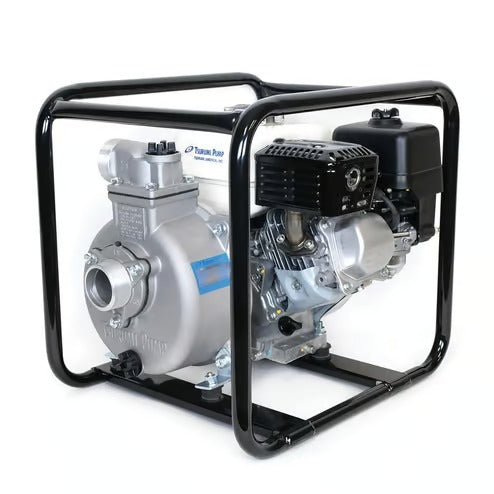

ENGINE DRIVEN CENTRIFUGAL PUMPS

Tsurumi's TE3-50HA is a powerful and lightweight engine-driven pump, perfect for general dewatering applications. Powered by a reliable Honda engine, this pump delivers efficient performance for tasks including irrigation, construction site drainage, and emergency water removal. Its durable construction and easy portability provide a longer life.

• Compact and Portable: lightweight design for easy transport and quick deployment
• Reliable Honda Engine: provides dependable power and fuel efficiency for consistent operation
• Durable Construction: built to withstand tough conditions and ensure long service life

Specifications:

• General Information
• Discharge Size: 2 inches
• Horsepower: 4 HP
• Max Solids Handling: 0.375 inches

Description:

Quality and performance come standard.

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

• Common Applications:
• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Construction / industrial equipment
• Agricultural equipment
• Water pumps
• Pressure Washers
• Forestry equipment

Features:

Fuel Efficient, High Output Operation

• Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficency
• OHV design for increased efficiency and optimal power transfer
• High compression ratio for better fuel efficiency

Smooth Performance

• Precision engineered components result in lower vibration
• Reduced piston weight and precision-balanced crankshaft result in lower engine vibration (GX160)
• Ball bearing supported crankshaft for greater stability

Exceptionally Quiet

• Aluminum push rods reduce both valve clearance and noise level. (GX160)
• Muffler and breather valve enhancements reduce noise and improve sound quality
• Reduced mechanical noise due to light weight, noise-reducing materials
• Forged steel crankshaft and rigid crankcase
• Helical cut gears
• Sophisticated air intake system

Proven Reliability

• Oil Alert Learn More
• New carburetor chamber coating and carburetor filter help to protect against fuel impurities
• Cast iron cylinder sleeve
• High quality materials, fit, and finish
• Dual element air cleaner
• Fuel Valve
• 3-Year Limited Warranty

Easy to Use and Maintain

• Simple throttle control
• Large fuel tanks
• Large automotive type fuel cap
• Dual oil drains and fill
• Easily accessible spark plug

Easy Starting

• Heavy duty recoil starter
• Ergonomic, easy to grip recoil rope design
• Automatic mechanical de-compression system Learn More

Emissions Compliant

• No catalyst necessary
• Available Options
• Low profile versions (Select models)
• Gear reduction options
• Electric start (Select models)
• Spark arrester available
• Charge and lamp coils with multiple output options available
• Cyclone Air Cleaner available ( Select models)

Specification:

• General Information
• Engine Type: Air-cooled 4-stroke OHV
• Displacement: 196 cm³
• Bore x Stroke: 68 mm x 54 mm
• Compression Ratio: 8.5:1
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Performance
• Net Power Output: 5.8 hp (4.3 kW) @ 3,600 rpm
• Net Torque: 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
• Fuel & Lubrication
• Fuel Type: Unleaded gasoline (86 octane or higher)
• Fuel Tank Capacity: 3.3 U.S. qts (3.1 liters)
• Lubrication System: Splash
• Oil Capacity: 0.63 U.S. qt (0.6 liters)
• Ignition & Starting
• Ignition System: Transistorized magneto
• Starting System: Recoil Starter
• Carburetion & Air Filtration
• Carburetor Type: Butterfly
• Air Cleaner: Dual Element
• Governor System
• Type: Mechanical
• Electrical Options
• Lamp/Charge Coil Options: 25W, 50W / 1A, 7A, 18A
• Physical Dimensions & Weight
• Length: 12.6" (321 mm)
• Width: 14.8" (376 mm)
• Height: 13.6" (346 mm)
• Dry Weight: 35 lbs (16.1 kg)
• Compliance & Warnings
• California Prop 65 Warning: Yes

Description:

Features:

• Honda 270CC GX270 4-Cycle OHV Engine
• Higher torque for more power to move more snow
• Full ball-bearing support crankshaft for added durability
• Automatic decompression for easier starting
• Runs approx. 2.5 hours on a tank of fuel
• 120 Volt Electric Start w/ Recoil Back-Up
• Save your back and shoulders by simply pressing a button
• Hydrostatic Transmission
• Infinite number of forward and reverse speeds
• Single hand adjustment
• 210 Degree Chute Turning Radius
• Easily direct snow away from walkways and drives
• Throw snow up to 49 feet away - clear up to 50 tons of snow/hour
• Auger Height Adjustment System
• Set for max effectiveness on smooth, concrete or gravel surface
• Track Drive System
• Greater traction and stability on slippery surfaces
• Keeps auger housing on the ground to clear more snow
• Ice Breaking Serrated Auger
• Easily breaks thru heavily crusted or hard packed snow

Specifications:

Engine:

• Engine Brand: Honda GX270
• Engine Type: 4-Cycle OHV
• CC: 270 CCs
• Starting System: 120-Volt Electric /w Recoil
• Fuel Tank: 1.6 Gallons

Auger Housing / Chute Control:

• Stage Type: Two-Stage
• Profile: Steel 3-Blade
• Auger Material: Serrated Steel
• Chute Rotation: Basic Crank
• Turning Radius: 210 degrees
• Max Throwing Distance: 49 Feet
• Clearing Width: 28 Inches
• Intake Height: 20 Inches

Drive System:

• Drive: Hydrostatic
• Gear Case: Aluminum
• Reverse Speeds: Variable
• Tire Size: Tracks
• Forward Speeds: Variable

Options:

• Drift Cutters: Sold Separately
• Front Weights: Not Applicable
• Hand Warmers: No
• Headlight Type: Halogen
• Interlocking Controls: Yes
• Remote Deflector Controls: Yes
• Skid Shoes: Included - Reversible

Overview:

• Weight: 240 Pounds
• Consumer Warranty: 3 Years
• Commercial Warranty: 3 Years
• Product Length: 56.0 Inches
• Product Width: 28.5 Inches
• Product Height: 40.2 Inches

Description:

Features:

• Self-propelled, hydrostatic, commercial grade transmission
• Roto-Stop® blade stop system
• Rugged features for commercial use
• Easy starting commercial GXV160 Honda engine

Specifications:

• Official Model Name: HRC216K3HXPH
• Carton Label: HRC2163HXP
• Engine: GXV160
• Deck Material: Steel – 16 ga
• Cutting Width: 21"
• Mowing Height Range: 3/4" - 4"
• Mowing Height Adjustments: 8
• Transmission: Cruise Control (Hydrostatic)
• Ground Speed: 2.1 to 4.0 mph
• Starter: Recoil
• Choke System: Manual
• Throttle Control: Manual
• Drive: Shaft
• Handle: 1" Steel Tube
• Steel Deck Guards: Standard
• Wheels: 9" Nexite
• Ball Bearing Wheels: All
• Standard Functions: 3 in 1 Capable (Mulch/Bag, Optional Side Discharge)
• Bag: Standard
• Bag Capacity: 2.5 bushels
• Blade(s): Twin blades (MicroCut System®)
• Blade Control: Blade stop system (Roto-Stop®)
• Side/Rear Discharge: Rear Mount Optional
• Fuel Tank Capacity: 0.37 gallons
• Dry Weight: 123 lbs
• Operating Weight: 127 lbs
• Residential Warranty: 2 years
• Commercial Warranty: 1 year
• CA Compliant: Not for sale in California

Description:

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Features:

• Lawn mowers
• Commercial lawn and garden equipment
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment

Specifications:

• Honda GXV160 Engine
• Engine Type:
• Air-cooled 4-stroke OHV
• Bore x Stroke:
• 68 x 45 mm
• Displacement:
• 163 cm³
• Net Power Output:
• 4.3 hp (3.2 kW) @ 3,600 rpm
• Net Torque:
• 7.1 lb-ft (9.6 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Counterclockwise (from PTO shaft side)
• Compression Ratio:
• 8.0:1
• Carburetor:
• Float Type
• Ignition System:
• Transistorized magneto
• Starting System:
• Recoil
• Lubrication System:
• Splash
• Governor System:
• Centrifugal Mechanical
• Air Cleaner:
• Dual element
• Oil Capacity:
• 0.69 US qt (0.65 L)
• Fuel Tank Capacity:
• 1.5 US qt (1.4 L)
• Fuel:
• Unleaded 86 octane or higher
• Dry Weight:
• 32 lb (14.5 kg)
• Dimensions:
• Length: 16.3" (415 mm)
• Width: 14.1" (359 mm)
• Height: 13.9" (354 mm)

Description:

Features:

• Honda 35cc 4-stroke engine
• Runs on straight, unleaded gas (no mixing)
• 17" Semi-matic (bump feed) head with Ultra Quiet® line

Specification:

Honda GX35 Engine

• Engine: GX35
• Displacement: 2.18 cu. in. (35.8 cc)
• Fuel: Unleaded Gasoline (86 Octane or higher)
• Fuel Tank Capacity: 22.0 fl oz (650 ml)
• Carburetor: Diaphragm Type with Fuel Pump
• Idle Speed: 3,100 +/- 200 rpm
• Max. (No Load) RPM: 10,000 rpm (without cutting head)
• Dimensions (L x W x H): 73.8 in. x 12.8 in. x 10.2 in. (187.4 cm x 32.5 cm x 25.9 cm)
• Dry Weight:
• Without Cutting Head: 14.8 lbs (6.7 kg)
• With Cutting Head: 15.5 lbs (7.0 kg)
• Engine Stop Switch: Slide Type Switch
• Throttle Control: Two Motion Trigger
• Main Pipe Diameter: 1.0 in. (25.4 mm)
• Main Pipe Thickness: 0.06 in. (1.5 mm, Aluminum)
• Drive Shaft: Flexible Steel Cable
• Shaft Support: Nylon Support Sleeve
• Gear Ratio: 1.235
• Handle Type: Loop Type
• Cutting Head: Semi-matic Feed-Nylon
• Line Type: Ultra Quiet
• Cutting Width: 17"
• Single Harness: Standard
• Double Harness: Optional (must be used with all blade applications)
• Steel Blade: 9" or 10" Blades Optional (requires barrier kit)
• Blade Barrier Kit: Optional (must be used with all blade applications)
• Residential Warranty: 2 years
• Commercial Warranty: 1 year
• CA Compliant: Yes

Description:

Honda V-twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency. Not to mention a 3-year warranty.

Features:

• Common Applications
• Pressure washers
• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Forestry equipment
• Construction / industrial equipment
• Agricultural equipment
• Small vehicles
• Water pumps

Specifications:

• Honda GX630 Engine
• Engine Type:
• Air-cooled 4-stroke OHV
• Bore x Stroke:
• 78 x 72 mm
• Displacement:
• 688 cm³
• Net Power Output:
• 20.8 hp (15.5 kW) @ 3,600 rpm
• Net Torque:
• 35.6 lb-ft (48.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Counterclockwise (from PTO shaft side)
• Compression Ratio:
• 9.3:1
• Lamp/Charge Coil Options:
• 2.7A, 17A, 26A
• Carburetor:
• Horizontal type, two barrel butterfly valve, internal vent
• Ignition System:
• Digital CDI with variable ignition timing
• Starting System:
• Electric
• Lubrication System:
• Forced lubrication
• Governor System:
• Mechanical
• Air Cleaner:
• Dual element
• Oil Capacity:
• 2.1 US qt (2.0 L)
• Fuel:
• Unleaded 86 octane or higher
• Dry Weight:
• 96.8 lb (44 kg)
• Dimensions:
• Length: 15.9" (405 mm)
• Width: 16.1" (410 mm)
• Height: 17.2" (438 mm)

Description:

Honda’s GX 120 series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

• 3/4″ PTO
• Recoil Start
• Oil Alert

Features:

Fuel Efficient, High Output Operation

• Precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency
• OHV design for increased efficiency and optimal power transfer
• High compression ratio for better fuel efficiency

Smooth Performance

• Precision engineered components result in lower vibration
• Ball bearing supported crankshaft for greater stability

Exceptionally Quiet

• Even quieter than previous model!
• Large capacity, multi-chamber exhaust system
• Reduced mechanical noise due to light weight, noise-reducing materials
• Forged steel crankshaft and rigid crankcase
• Helical cut gears
• Sophisticated air intake system

Proven Reliability

• Oil Alert
• New carburetor chamber coating and carburetor filter help to protect against fuel impurities
• Cast iron cylinder sleeve
• High quality materials, fit, and finish
• Dual element air cleaner
• Fuel Valve
• 3-Year Limited Warranty

Easy To Use and Maintain

• Simple throttle control
• Large fuel tanks
• Large automotive type fuel cap
• Dual oil drains and fill
• Easy, convenient, heavy duty control box
• Easily accessible spark plug

Easy Starting

• Heavy duty recoil starter
• Ergonomic, easy to grip recoil rope design
• Automatic mechanical de-compression system

Emissions Compliant

• Lower emissions, same power output!
• CARB and EPA certified
• No catalyst necessary

Common Applications

• Pressure washers
• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Construction / industrial equipment
• Agricultural equipment
• Small vehicles
• Water pumps

Common Applications

• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Construction / industrial equipment
• Agricultural equipment
• Water pumps

Specifications:

• Brand:
• Brand: Honda
• Engine Series:
• Series: Honda GX120
• Starting System:
• Start: Pull Start
• Engine Type:
• Type: Air Cooled 4-Stroke OHV (Overhead Valve)
• Engine Dimensions:
• Bore: 60 mm
• Stroke: 42 mm
• Displacement: 118 cm³
• Performance:
• Net Power Output: 3.5 HP (2.6 kW) @ 3,600 rpm
• Net Torque: 5.4 lb-ft (7.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 8.5:1
• Carburetor:
• Type: Butterfly
• Ignition System:
• System: Transistorized magneto
• Lubrication System:
• System: Splash
• Governor System:
• System: Mechanical
• Air Cleaner:
• Type: Dual Element
• Oil System:
• Oil Capacity: 0.59 US qts (0.56 L)
• Fuel System:
• Fuel Tank Capacity: 2.1 US qts (2.0 liters)
• Fuel Type: Unleaded 86 Octane or Higher
• Weight:
• Weight: 29 lbs
• Dimensions:
• Dimensions: 11.7 × 13.6 × 13.0 in

Description:

The GX160 engine is suitable for a wide range of heavy duty applications such as in construction equipment, tillers, generators, welders, pumps and other industrial applications.

Features:

• OHV design enhances combustion efficiency
• High power-to-displacement ratio
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components which ensure reliable, long-term use
• Meets world's most stringent environmental legislation
• Low fuel and oil consumption
• Reduced vibration and noise levels

Specifications:

• Engine Type:
• Type: Air-cooled 4-stroke OHV (Overhead Valve)
• Engine Dimensions:
• Bore x Stroke: 68 x 45 mm
• Displacement: 163 cm³
• Performance:
• Net Power Output: 4.8 hp (3.6 kW) @ 3,600 rpm
• Net Torque: 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 9.0 : 1
• Carburetor:
• Type: Butterfly
• Ignition System:
• System: Transistorized magneto
• Starting System:
• Type: Recoil Starter
• Lubrication System:
• System: Splash
• Governor System:
• System: Centrifugal Mechanical
• Air Cleaner:
• Type: Dual Element
• Oil System:
• Oil Capacity: 0.61 US qt. (0.58 L)
• Fuel System:
• Fuel Tank Capacity: 3.3 U.S. qts (3.1 liters)
• Fuel Type: Unleaded 86 Octane or Higher
• Electrical Options:
• Lamp/Charge Coil Options: 25W, 50W / 1A, 3A, 7A
• Weight:
• Dry Weight: 33 lbs (15.1 kg)

Description:

Specifications:

Engine

• Type: 4 Stroke, OHV, Single Cylinder, Inclined 25°
• Bore x Stroke: 88.0 x 64.0 mm (3.5 x 2.5 in)
• Displacement: 389 cm³ (23.7 cu–in)
• Net Power (SAE J1349): 8.3 kW (11.1 HP) at 3,600 rpm
• Maximum Net Torque (SAE J1349):
• 25.0 N·m (2.55 kgf·m, 18.4 lbf·ft) at 2,500 rpm
• Compression Ratio: 8.2:1
• Fuel Consumption (at Continuous Rated Power):
• 3.5 Liters (0.92 US gal, 0.77 Imp gal) per hour
• Ignition System: C.D.I. (Capacitor Discharge Ignition) type magneto ignition
• Lubrication System: Forced splash
• Oil Capacity: 1.1 Liters (1.16 US qt, 0.97 Imp qt)
• Starting System: Recoil starter
• Air Cleaner: Cyclone type
• Governor: Mechanical centrifugal
• Fuel Used: Gasoline with a pump octane rating of 86 or higher
• Fuel Tank Capacity: X (Not provided)
• Dry Weight: 31.8 kg (70.1 lbs)
• PTO Size: 25.375 – 25.4 mm (0.9990 – 1.0 in)

Remarks / Application:

• Suitable for use in Concrete Cutters and Road Rollers.

Description:

Specifications:

Engine

• Engine Type: Air-cooled 4-stroke OHV single cylinder
• Bore x Stroke: 2.7" x 1.8" (68 x 45 mm)
• Displacement: 10 cu in (163 cm³)
• Compression Ratio: 8.0 : 1
• Net Power: 4.3 hp (3.2 kW) at 3,600 rpm
• Net Torque: 7.1 lb-ft (9.6 Nm) at 2,500 rpm
• PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
• Ignition System: Transistorized Magneto
• Starting System: Recoil Starter
• Carburetor: Horizontal type butterfly valve
• Lubrication System: Forced Splash
• Governor System: Centrifugal Mechanical
• Air Cleaner: Dual Element
• Oil Capacity: 0.69 US qt (0.65 L)
• Fuel Tank Capacity: 1.9 US qt (1.8 L)
• Dimensions (L x W x H): 16.3" (415 mm) x 14.1" (359 mm) x 13.9" (354 mm)
• Dry Weight: 31.5 lbs (14.3 kg)

Description:

The GXV160 engine is suitable for a wide range of heavy-duty applications such as lawn mowers, construction equipment and other industrial applications.

Engine features:

• The OHV design enhances combustion efficiency
• High power-to-displacement ratio
• Easy starting with an automatic decompression system
• Low vibration and noise levels
• High quality materials and purpose-built components ensure reliable long-term use
• Exceeds European exhaust emission legislation
• Low fuel and oil consumption

Specifications:

Engine

• Engine Type: 4-stroke single cylinder OHV petrol engine, vertical shaft
• Cylinder Sleeve Type: Cast iron sleeve
• Bore x Stroke: 68 x 45 mm
• Displacement: 163 cm³
• Compression Ratio: 8.0 : 1
• Net Power: 3.2 kW (4.3 HP) @ 3,600 rpm
• Continuous Rated Power: 2.0 kW (2.7 HP) @ 3,000 rpm
• Max. Net Torque: 9.6 Nm (0.98 kgfm) @ 2,500 rpm
• Ignition System: Transistorized
• Starter: Recoil
• Fuel Tank Capacity: 1.4 L
• Fuel Consumption at Continuous Rated Power: 1.1 L/h @ 3,000 rpm
• Engine Oil Capacity: 0.65 L
• Dimensions (L x W x H): 420 x 365 x 357 mm
• Dry Weight: 15.5 kg

Description:

Quiet, Lightweight Reliable Power

Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.

Features:

• Pressure washers
• Lawn mowers
• Agricultural equipment
• Forestry equipment

Specifications:

• Engine Type:
• Type: Air-cooled 4-stroke OHC (Overhead Camshaft)
• Engine Dimensions:
• Bore x Stroke: 2.5" x 2.0" (69 mm x 50 mm)
• Displacement: 9.8 cu in (160 cm³)
• Performance:
• Net Power Output: 4.4 HP (3.3 kW) @ 3600 rpm
• Net Torque: 6.9 lb-ft (9.4 Nm) @ 2500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 8.5:1
• Carburetor:
• Type: Horizontal type butterfly valve
• Ignition System:
• System: Transistorized magneto
• Starting System:
• System: Recoil
• Air Cleaner:
• Type: Splash
• Governor System:
• System: Centrifugal Mechanical
• Fuel System:
• Fuel Tank Capacity: 0.58 US qt (0.55 l)
• Fuel Type: Unleaded 86 octane or higher
• Oil Capacity: 0.98 US qt (0.93 l)
• Lubrication System: Splash
• Weight:
• Dry Weight: 23.1 lbs (10.5 kg)
• Dimensions:
• Length: 14.4" (367 mm)
• Width: 13.0" (331 mm)
• Height: 13.8" (349 mm)

Description:

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX120, 160, and 200 live up to the legend. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

Common Applications:

• Commercial lawn and garden equipment
• Tillers / cultivators
• Generators
• Construction / industrial equipment
• Agricultural equipment
• Water pumps
• Pressure Washers
• Forestry equipment

Specifications:

• Engine Type:
• Type: Air-cooled 4-stroke OHV (Overhead Valve)
• Engine Dimensions:
• Bore x Stroke: 60 mm x 43.5 mm
• Displacement: 122 cm³
• Performance:
• Net Power Output: 3.2 hp (2.4 kW) @ 3,600 rpm
• Net Torque: 5.5 lb-ft (7.3 Nm) @ 2,500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 8.3:1
• Electrical System:
• Lamp/Charge Coil Options: 25W, 50W
• Carburetor:
• Type: Butterfly
• Ignition System:
• System: Transistorized magneto
• Starting System:
• System: Recoil Starter
• Lubrication System:
• System: Splash
• Governor System:
• System: Mechanical
• Air Cleaner:
• Type: Dual Element
• Oil System:
• Oil Capacity: 0.59 US qt. (0.56 L)
• Fuel System:
• Fuel Tank Capacity: 2.1 U.S. qts (2.0 liters)
• Fuel Type: Unleaded 86 octane or higher
• Weight:
• Dry Weight: 28.9 lbs (13.2 kg)
• Dimensions:
• Length: 11.7" (297 mm)
• Width: 13.6" (346 mm)
• Height: 13.0" (329 mm)
• PTO Options:
• L Type: Reduction type PTO
• Q Type: Straight shaft
• S Type: Straight shaft (metric)
• T Type: Straight shaft
• AR Type: Rammer

Description:

The GX390 engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.

Features:

• The OHV design enhances combustion efficiency
• A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components ensure reliable long-term use
• Meets world's most stringent environmental legislation
• Guaranteed low fuel and oil consumption
• Reduced vibration and noise level

Specifications

• Type: 4-Stroke Single Cylinder OHV Petrol Engine
• Cylinder Inclination: 25° inclined cylinder
• Shaft Orientation: Horizontal shaft
• Cylinder Sleeve: Cast Iron Sleeve
• Bore x Stroke: 88 x 64 mm
• Displacement: 389 cm³
• Compression Ratio: 8.2 : 1
• Power Output:
• Net Power: 8.7 kW (11.7 HP) at 3600 rpm
• Continuous Rated Power:
• 6.4 kW (8.6 HP) at 3000 rpm
• 7.0 kW (9.4 HP) at 3600 rpm
• Max. Net Torque: 26.5 Nm (2.7 kgfm) at 2500 rpm
• Ignition System: Digital CDI with Variable Ignition Timing
• Starter: Recoil (Electric Start Optional)
• Fuel System:
• Tank Capacity: 6.1 Liters
• Fuel Consumption at Continuous Rated Power: 3.5 L/h at 3600 rpm
• Engine Oil Capacity: 1.1 Liters

Dimensions (L x W x H): Inches: 16.0 x 18.1 x 17.6 inches

Dry Weight: Pounds: 69.8 lbs
