Description:

Quiet, Lightweight Reliable Power

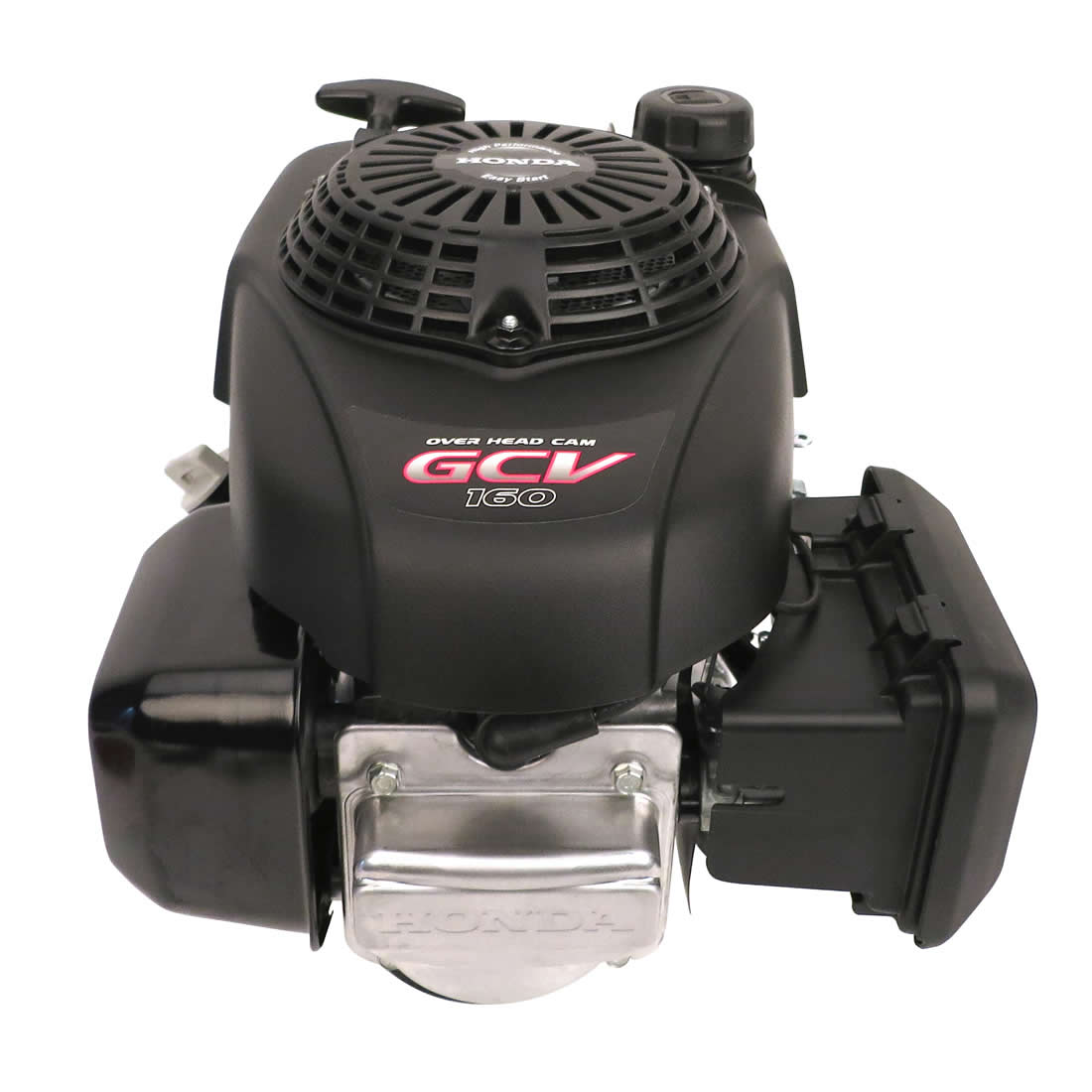

Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.

Features:

• Pressure washers
• Lawn mowers
• Agricultural equipment
• Forestry equipment

Specifications:

• Engine Type:
• Type: Air-cooled 4-stroke OHC (Overhead Camshaft)
• Engine Dimensions:
• Bore x Stroke: 2.5" x 2.0" (69 mm x 50 mm)
• Displacement: 9.8 cu in (160 cm³)
• Performance:
• Net Power Output: 4.4 HP (3.3 kW) @ 3600 rpm
• Net Torque: 6.9 lb-ft (9.4 Nm) @ 2500 rpm
• PTO Shaft Rotation:
• Direction: Counterclockwise (from PTO shaft side)
• Compression Ratio:
• Ratio: 8.5:1
• Carburetor:
• Type: Horizontal type butterfly valve
• Ignition System:
• System: Transistorized magneto
• Starting System:
• System: Recoil
• Air Cleaner:
• Type: Splash
• Governor System:
• System: Centrifugal Mechanical
• Fuel System:
• Fuel Tank Capacity: 0.58 US qt (0.55 l)
• Fuel Type: Unleaded 86 octane or higher
• Oil Capacity: 0.98 US qt (0.93 l)
• Lubrication System: Splash
• Weight:
• Dry Weight: 23.1 lbs (10.5 kg)
• Dimensions:
• Length: 14.4" (367 mm)
• Width: 13.0" (331 mm)
• Height: 13.8" (349 mm)
