Description:

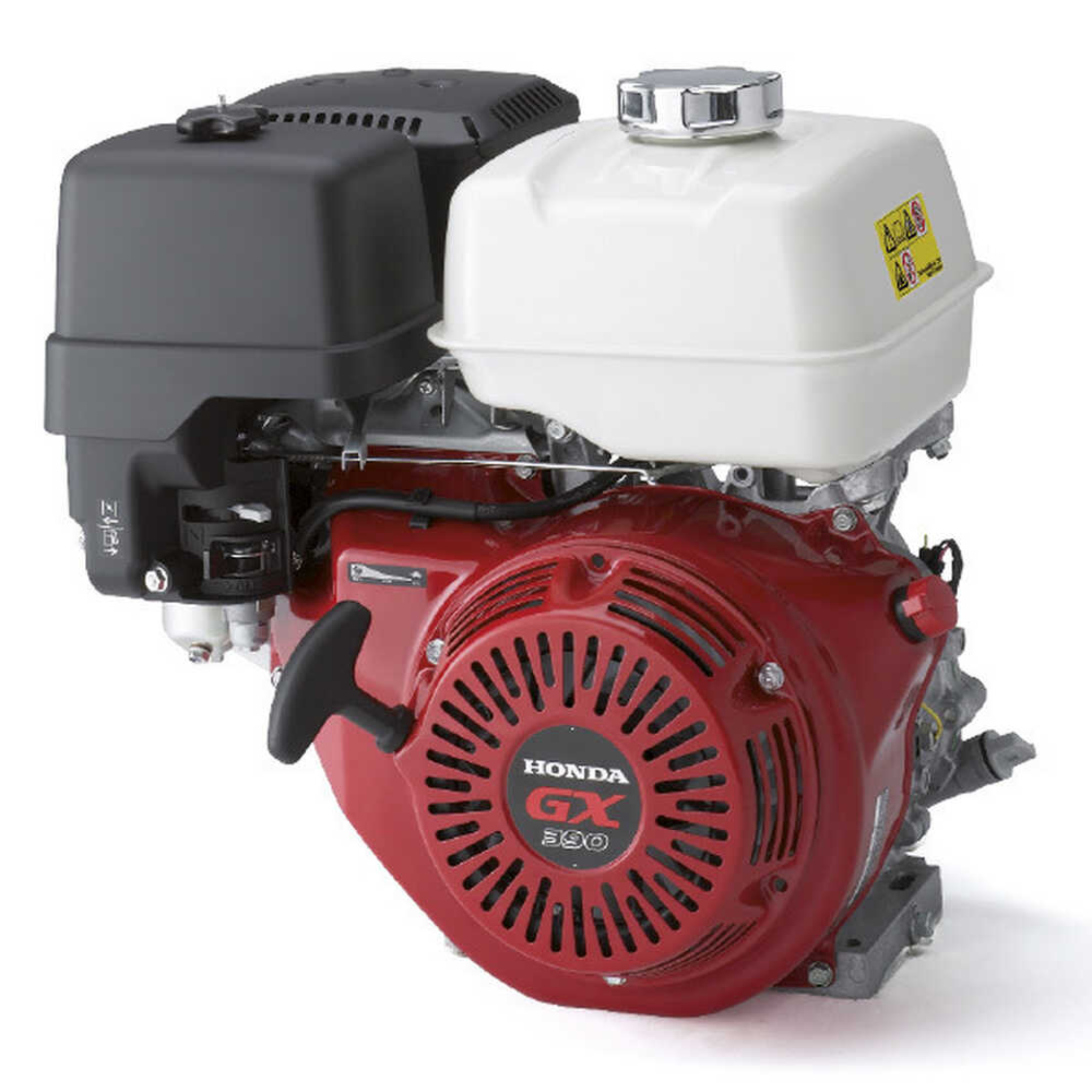

The GX390 engine is suitable for a wide range of heavy-duty applications such as construction equipment, tillers, generators, welders, pumps and other industrial applications.

Features:

• The OHV design enhances combustion efficiency
• A variable ignition timing (digital CDI) results in high power output, reduced fuel consumption and excellent exhaust emissions performance.
• Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle
• High quality materials and purpose-built components ensure reliable long-term use
• Meets world's most stringent environmental legislation
• Guaranteed low fuel and oil consumption
• Reduced vibration and noise level

Specifications

• Type: 4-Stroke Single Cylinder OHV Petrol Engine
• Cylinder Inclination: 25° inclined cylinder
• Shaft Orientation: Horizontal shaft
• Cylinder Sleeve: Cast Iron Sleeve
• Bore x Stroke: 88 x 64 mm
• Displacement: 389 cm³
• Compression Ratio: 8.2 : 1
• Power Output:
• Net Power: 8.7 kW (11.7 HP) at 3600 rpm
• Continuous Rated Power:
• 6.4 kW (8.6 HP) at 3000 rpm
• 7.0 kW (9.4 HP) at 3600 rpm
• Max. Net Torque: 26.5 Nm (2.7 kgfm) at 2500 rpm
• Ignition System: Digital CDI with Variable Ignition Timing
• Starter: Recoil (Electric Start Optional)
• Fuel System:
• Tank Capacity: 6.1 Liters
• Fuel Consumption at Continuous Rated Power: 3.5 L/h at 3600 rpm
• Engine Oil Capacity: 1.1 Liters

Dimensions (L x W x H): Inches: 16.0 x 18.1 x 17.6 inches

Dry Weight: Pounds: 69.8 lbs
