Description:

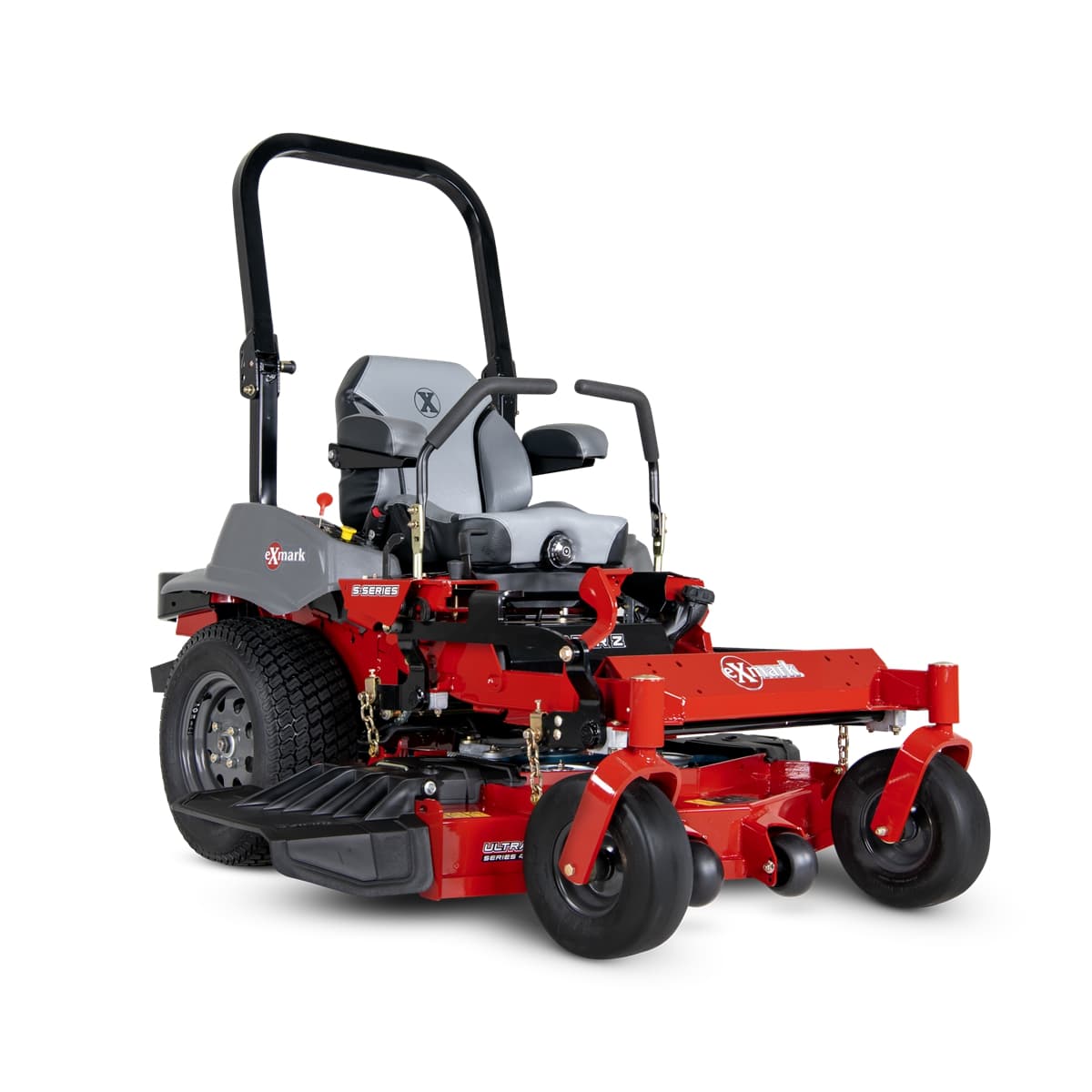

The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.

In all, the Lazer Z S-Series delivers the power and productivity to make quick work of large jobs, with the reliability and long-term value Exmark owners expect. Be sure to check out the entire Lazer Z family, including the

the new Lazer Z X-Series zero-turn mowers.

Specifications:

• General Information
• UPC: 193308242323
• Width / Cutting Deck: 72"
• Drive: Hydro-Drive
• Starter: Electric
• Steering Control:
• Hydraulically dampened twin levers, adjustable fore and aft
• 2-position height adjustment
• Adjustable dampers (3 positions) for customized drive responsiveness
• Chassis & Tires

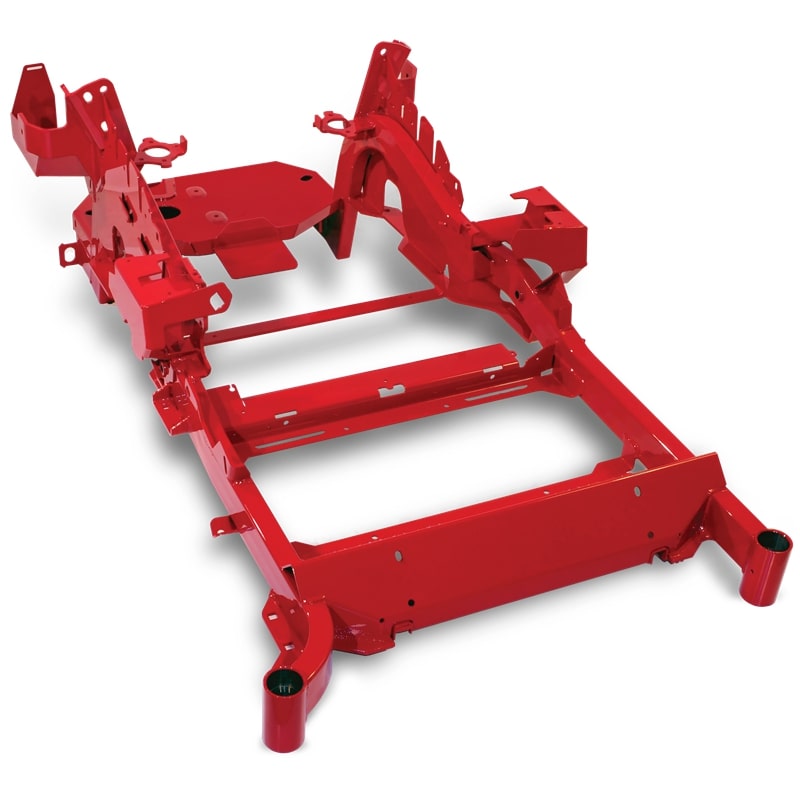

• Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel
• Caster Forks: 0.50" thick caster yoke arms
• Front Caster Tires: 13 x 6.5-6, smooth tread, semi-pneumatic
• Drive Tires: 24 x 12-12, 4-ply Grassmaster TL
• Engine & Performance
• Engine Brand: Kohler
• Engine Model: ECV749
• Engine Displacement: 747 cc
• Engine Series: Command™ EFI
• Engine Spec: ECV749
• Engine Speed: 3,750 RPM
• Air Filter: Heavy-duty canister air filtration system
• Fuel Type: Gas EFI
• Fuel Capacity: 12-gallon single fuel tank with single fill location
• Speed:
• 0–10.0 mph (16.1 km/h) forward
• 0–7.0 mph (11.3 km/h) reverse
• Transmission & Drive System
• Transmission Speeds: Infinitely Variable
• Drive Description:
• Two Exmark exclusive Parker unitized pump and wheel motor systems
• No hoses, integrated cooling fans, shock valve
• 1.7-quart integrated reservoir, spin-on filter, heavy-duty components
• 12 cc pumps and 17.1 cubic inch motors
• Drive Wheel Release: Allows unit movement without engine running
• Cutting System
• Deck Style: Floating Deck
• Deck Style Description: Full-floating UltraCut Series 4
• Side discharge standard
• Option to bag or mulch
• Deck Construction:
• 10-gauge top (formed & continuously seam welded)
• 7-gauge side skirt
• 7-gauge formed & welded spindle mounting locations
• Cutting Heights: 1.0" to 5.5" in 0.25" increments
• Blade Tip Speed: Approximately 18,500 fpm
• Blades: 3 Blades (24.50" length each)
• Safety & Convenience
• Safety Package:
• Operator Presence Controls (OPC)
• Drive system interlock with safety interlock system indicators
• Parking Brake: Lever actuated disc brake
• PTO Engagement: MagStop electromagnetic 200-ft-lb clutch with spot brake
• Deck Lift: Foot-controlled deck lift for height adjustment and transport
• Electrical & Additional Features
• Electrical: 12-volt battery with 20-amp alternator
• Fuel Indicator: Yes (electronic sender)
• Standard Features: Engine hour meter & cup holder
• Carb Compliant: Yes
• ROPS (Roll Over Protection System): 2-post foldable ROPS standard with seat belt and latch
• Dimensions & Weight
• Width: 84.9"
• Height: 70.5"
• Length: 86.1"
• Curb Weight: 1250 lbs
